37.HSS Center Drill bit

中心钻

  • Plain Type,  60º included angle, right-hand cut
  • Made from super speed steel, bright finish.
  • This tool is used for centering work ends, where the work-piece is to be revolved on machine centers.
  • 60° countersink angle fits all standard centers.
  • Dia.1.0-6.3mm; 3/64"-5/16")
　

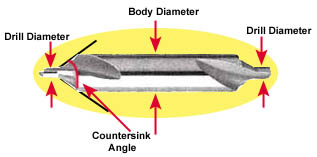

Art. No. BODY DIA DRILL DIA & LENGTH OVLL LENGTH BELL DIA USD UNIT PRICE
LCME37PLT001 1/8 3/64 1-1/4 　 　
LCME37PLT002 3/16 5/64 1-7/8 　 　
LCME37PLT003 1/4 7/64 2 　 　
LCME37PLT004 5/16 1/8 2-1/8 　 　
LCME37PLT005 7/16 3/16 2-3/4 　 　
LCME37PLT006 1/2 7/32 3 　 　
LCME37PLT007 5/8 1/4 3-1/4 　 　
LCME37PLT008 3/4 5/16 3-1/2 　 　
LCME37BET011 1/8 3/64 1-1/4 0.1000 　
LCME37BET012 3/16 1/16 1-7/8 0.1500 　
LCME37BET013 1/4 3/32 2 0.2000 　
LCME37BET014 5/16 7/64 2-1/8 0.2500 　
LCME37BET015 7/16 5/32 2-3/4 0.3500 　
LCME37BET016 1/2 3/16 3 0.4000 　
LCME37BET017 5/8 7/32 3-1/4 0.5000 　
LCME37BET018 3/4 1/4 3-1/2 0.6000 　
　
