16.Drill - chuck

钻夹头

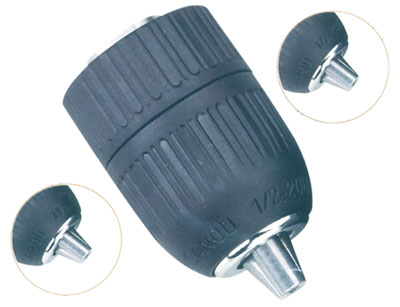

Self-fasten Drill Chuck

自紧式钻夹头







During all chuck operations, all

   difficult problems it occurs are

   also Longcheng People's difficult Problems. What is more, they are the

   very difficulties which Longcheng People

   constantly studies how discusses

   to surmount at any cost.



Art. No.

Capacity

(mm)

Joining

dimension

D L

Weight

Kg)

  LCOT160J3516 3-16 1/2-20UNF 53 86 0.625
  LCOT16J3516A 3-16 3/8-24UNF 53 86 0.625
  LCOT16J3516B 3-16 5/8-16UN 53 86 0.625

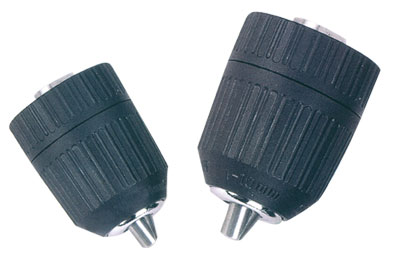

Art. No.

Capacity

(mm)

Joining

dimension

D L

Weight

Kg)

 LCOT160J216A 0.6-6 B10 30 49 0.115
 LCOT1600J216 0.6-6 B10 30 49 0.125
 LCOT1600J316 0.6-6 3/8-24UNF 30 49 0.115
 LCOT1600J224 0.3-4 JT0 22 33.5 0.041



  In todai-tey's scch &talent fighting,

the working method of power tools is

continuously changing. Its productive

results also keep increasing. Since

its establishment, Longcheng People always

regards talents as its capital, strengthens its management. It incessantly

seeks solutions and makes researches.

Time after time it transforms high &

new technical innovation into more

perfect products.

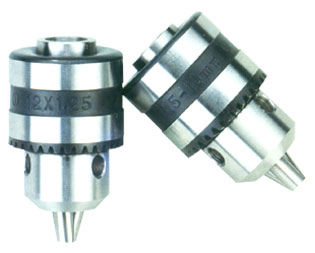

Art. No.

Capacity

(mm)

Joining

dimension

D L

Weight

Kg)

 LCOT160J3510 1.5-10 3/8-24UNF 33.3 57 0.160
 LCOT16J3510A 1.5-10 M12×1.25 33.3 57 0.160
 LCOT16J3510B 1.5-10 1/2-20UNF 33.3 57 0.160
 LCOT16J3510C 1.5-10 M10×1 33.3 57 0.160
 LCOT16J02510 1.5-10 B12 33.3 57 0.160

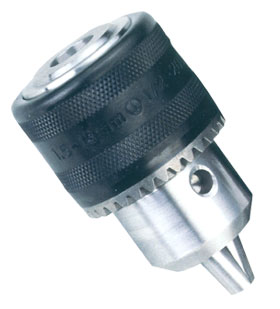

Art. No.

Capacity

(mm)

Joining

dimension

D L

Weight

Kg)

 LCOT160J2513 1.5-13 B16 42.5 72.5 0.305
 LCOT16J2613A 1.5-13 JT33 42.5 72.5 0.305






      What our consumers think is also what

    Longcheng People thinks. What our consumers

    don't call to mind, but Longcheng People

    calls to mind. In order to manufacture

    more perfect products, Longcheng People

    will be at all costs.

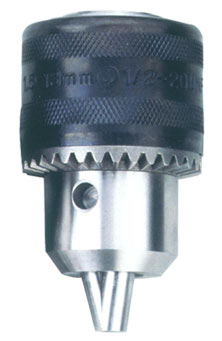

Art. No.

Capacity

(mm)

Joining

dimension

D L

Weight

Kg)

 LCOT16J03513 1.5-13 1/2-20UNF 42.5 72.5 0.305
 LCOT16J3513A 1.5-13 3/8-24UNF 42.5 72.5 0.305
 LCOT16J3513B 1.5-13 M12×1.25 42.5 72.5 0.305
 LCOT16J3513C 1.5-13 M12×1 42.5 72.5 0.305

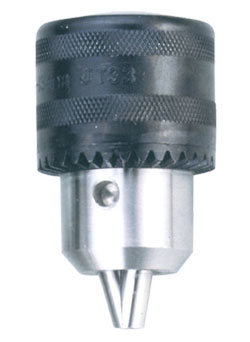

Art. No.

Capacity

mm)

Joining

dimension

D

L

Weight

Kg)

 LCOT160J2113

1-13

B16

53

86

0.625

 LCOT160J2516

3-16

B16

53

86

0.625

 LCOT16J2516A

3-16

B18

53

86

0.625

 LCOT160J2116

1-16

B18

57

93

0.818

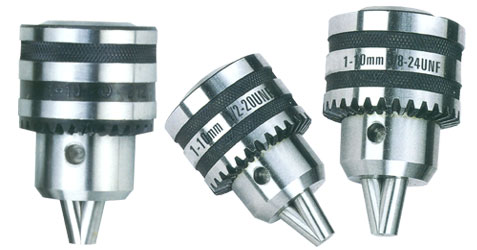

Art. No.

Capacity

mm)

Joining

dimension

D

L

Weight

(Kg)

 LCOT160J3110

1-10

3/8-24UNF

42.5

70

0.335

 LCOT16J3110A

1-10

1/2-20UNF

42.5

70

0.335

 LCOT160J2110

1-10

B12

42.5

70

0.335



Art. No.

Capacity

mm)

Joining

dimension

D

L

Weight

(Kg)

 LCOT160J1513

2-13

1/2-20UNF

43

74

0.265

 LCOT16J1513A

2-13

3/8-24UNF

43

74

0.265

 LCOT160J1713

2-13

1/2-20UNF

45

82

0.305

 LCOT16J1713A

2-13

3/8-24UNF

46

82

.0305

 LCOT160J1510

1-10

3/8-24UNF

41

64

0.240

 LCOT16J1510A

1-10

1/2-20UNF

41

64

0.240

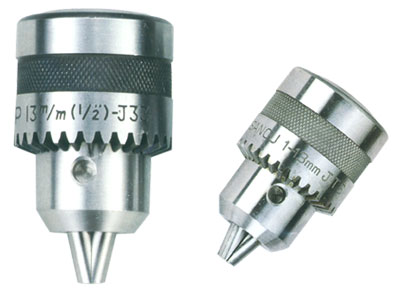

Art. No.

Capacity

mm)

Joining

dimension

D

L

Weight

Kg)

 LCOT160J2213

1-13

JT6

53

86

0.625

 LCOT160J2613

1-13

JT33

45

79

0.425

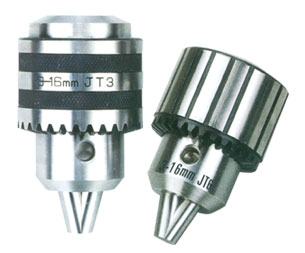

Art. No.

Capacity

mm)

Joining

dimension

D

L

Weight

(Kg)

 LCOT160J2616

3-16

JT3

53

93

0.650

 LCOT16J2616A

3-16

JT6

53

86

0.625

 LCOT16J2616V

3-16

JT3

53

93

0.650

 LCOT16J2616U

3-16

JT6

53

86

0.625
